| Quantity: | |
|---|---|
CFD-DVL-101100X
CFDPLAS
3926909090

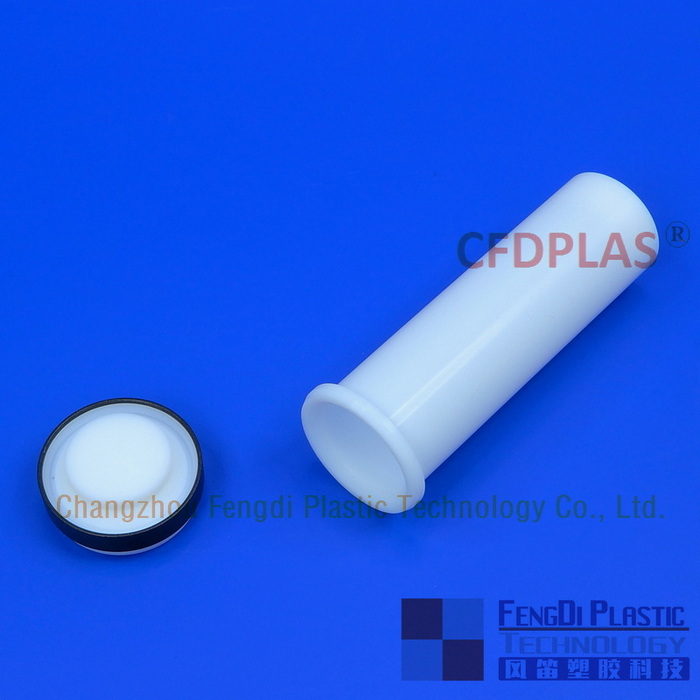

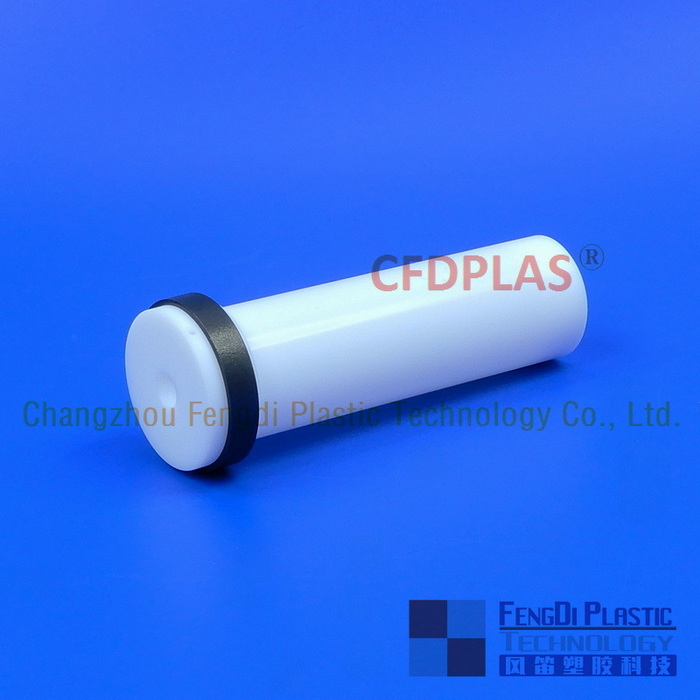

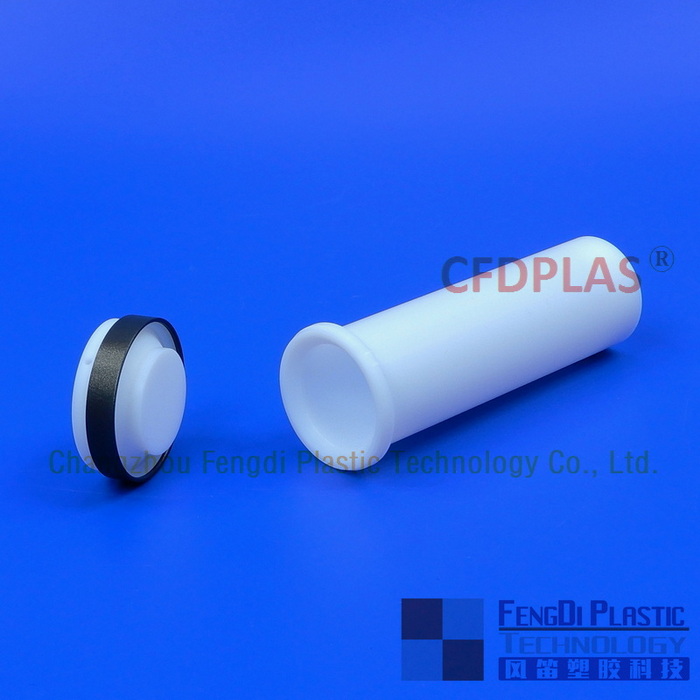

Replacement TFM Vessel Liner 100ml with Standard Cover for Mars6 EasyPrep Plus Microwave Digestion Systems
TFM Liner Capacity: 100ml
Brand Name: CFDPLAS
Model Number: CFD-DVL-101100X
Place of Origin: Changzhou, China
Material: TFM
Cover:Standard TFM Cover with SUS304 composite support ring
Color: Natural
Temperature Range: -200~+260℃
Feature：
Made of virgin Purity TFM material.
Surface smooth finish,no burrs,no marks,homogenous,non-porous surface.
Duplicate use.
Packing: Carton
MOQ: 5 PCS
Dedicated Replacement to Mars6 EasyPrep XP1500Plus Microwave Digestion Instrument and related digestion systems.
TFM Liner's Replacements Used in EasyPrep, EasyPrep Plus,Omni,and XP 1500 Plus Vessels.
standard TFM cover with SUS304 composite support ring.

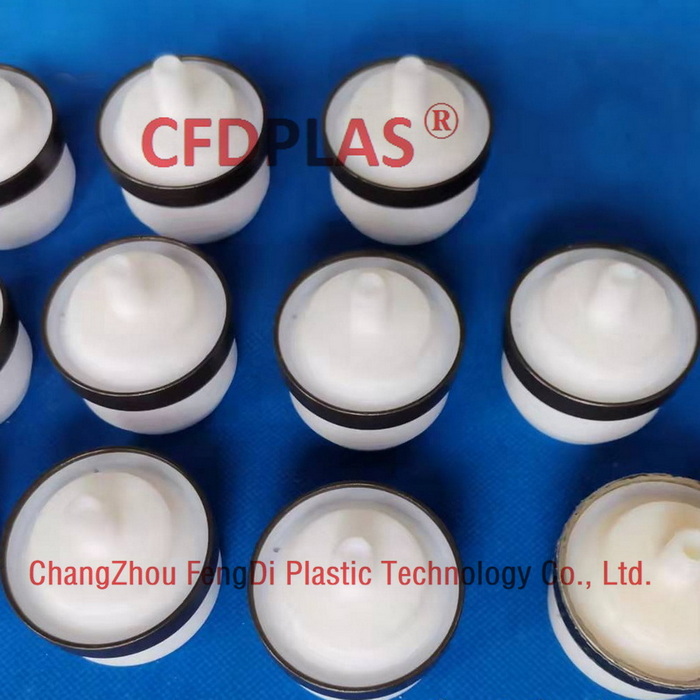

TFM Standard Cover with Titanium Ring.

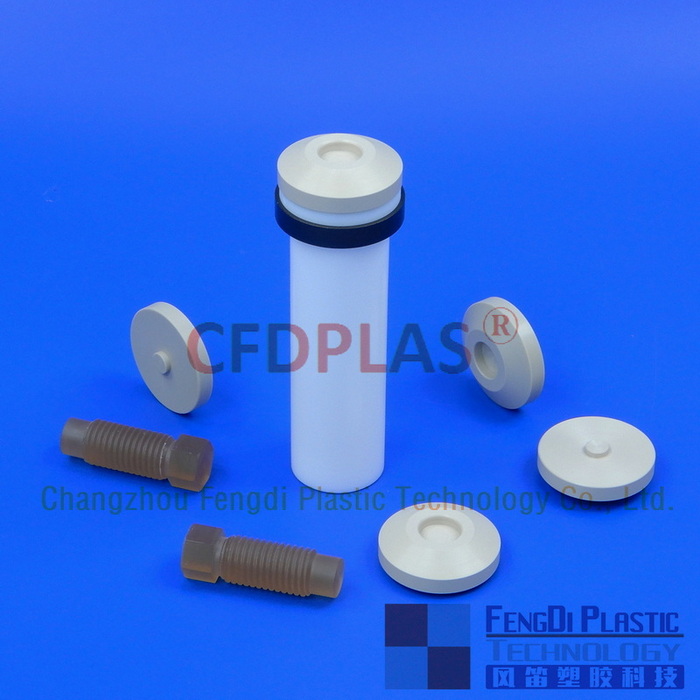

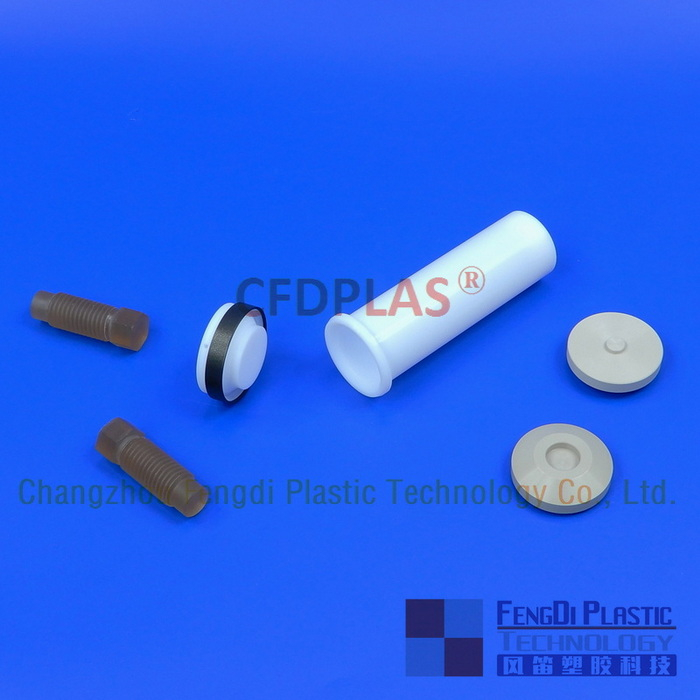

Liner,TFM,Used in EasyPrep Plus,EasyPrep,XP 1500+ and OMNI model of digestion vessels.
Vessel Sleeve,Composite Sleeve,Used in EasyPrep Plus, EasyPrep,GreenChem,OMNI,XP & HP Plus vessels.
Standard Load Disk ,PEEK.
Control Load Disk.PEEK.
Control Frame Screw.PI or PEEK.
Standard Frame Screw.PI or PEEK.
Related other type Replacements of TFM digestion vessel liners and vials:
Preekem TFM Liner,Anton-Paar digestion vessel liner,APL vessel Liner,SINEO Microwave Digestion Vessel Liner,LabTech vials,XinTuo digestion tanks,Milestone TFM vessels......and so on.
Related other model of digestion replacement parts:
Replacement TFM Vessel liner vials volumes: 10ml,20ml,25ml,40ml,55ml,75ml,100ml,110ml.
The microwave digestion tank(vessel) is composed of an outer tank (sheath,outer vessel) and an inserted digestion tank (inner vessel liner). Such a combined tank can be separated.
The combined tank is generally composed of a shell, a frame (intermediate layer), and an inserted digestion tank, and some combined tanks do not use an intermediate layer.
The shell(protection shield) materials are composite fiber, PEEK, high temperature ceramics, Ultem-100 (Ultem materials have basically been eliminated).
The frame is mainly made of PFA and high-strength engineering plastics.
The inner digestion vessel liner is in direct contact with the sample and acid, and the acid resistance, temperature resistance and high pressure performance are the primary considerations.
There are generally 4 kinds of materials for the insertion digestion liner, PTFE, TFM, PFA, Quartz, the first three are all fluoroplastic types. Quartz digestion Vessel Liners cannot be used alone and should be sheathed.
Compared with the three kinds of fluoroplastics, TFM is undoubtedly the best digestion material, so at present, the inserted digestion tanks of the high-pressure digestion tanks of the imported microwave digestion system are generally made of TFM material.
Generally, PFA and PTFE can only be used as medium and low pressure digestion vessels Liner.
CFDPLAS manufactures a wide variety of vessels to meet the temperature and pressure conditions required to completely digest your samples.
All CFDPLAS vessels are manufactured from materials that are microwave transparent and focus all of the energy to your samples.
The open architecture design provides for rapid cooling without the need for special accessories.
From high throughput to high pressure CFDPLAS has the right vessel for the task at hand.
CFDPLAS Series TFM Vessels tanks,Liners,Vials are used on many type of digestion instruments,e.g.
Graphite digestion instrument,Electrothermal digestion instrument,Automatic Electrothermal Digestion Apparatus,Hot Plate,Acid Catcher,Automatic Digestion Instrument,COD Digestion Instrument,Microwave Digestion Extractor,Microwave Digestion Systems,Microwave Synthesis Systems,Microwave Ashing Systems,Atomic Absorption Spectrometer,Atomic fluorescence spectrometer,High Temperature Automated Block Digestion,Heating Blocks for Open Vessel Digestion,and so on.
CFDPLAS Series TFM Vessels tanks,Liners,Vials as replacement parts are used on many Brands of digestion instruments,e.g.: CEM,Preekem,Milestone,Anton-Paar,Labtech,Sineo,APL,EE,Ossur,Analab,Bohlender,LEEMAN,SCP,Berghof,ATPIO,NUTEC,......and so on.
