| Quantity: | |
|---|---|
CFD-DVL-111100MP/VHP
CFDPLAS
3926909090

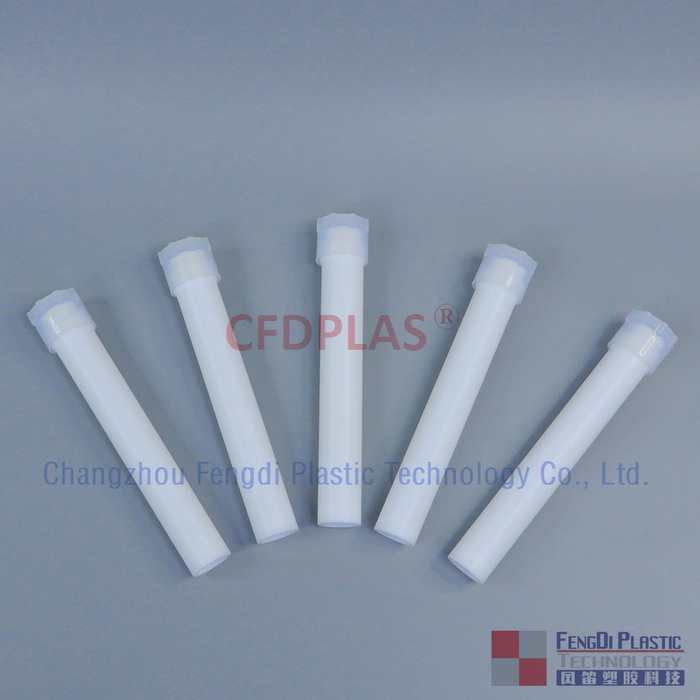

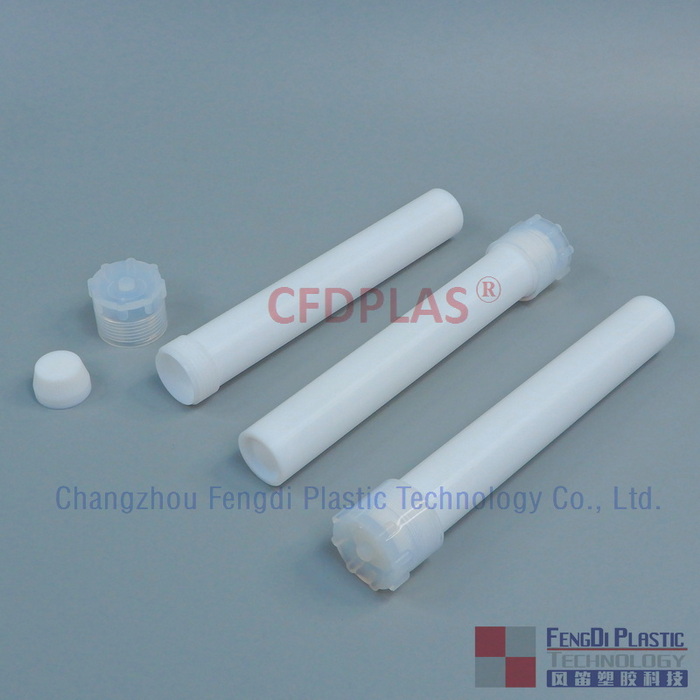

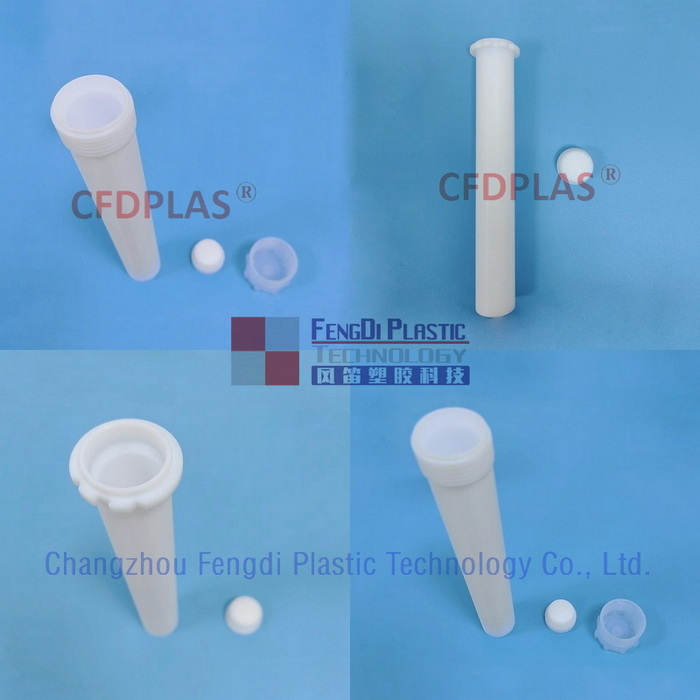

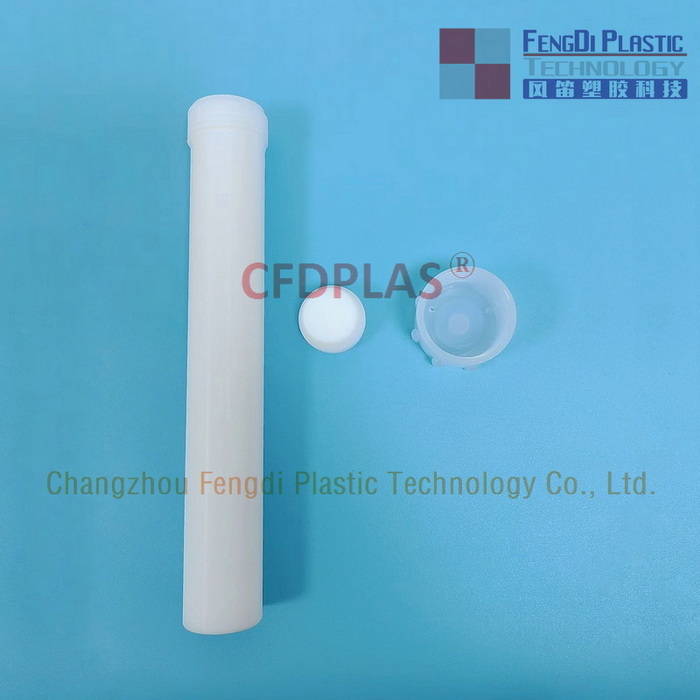

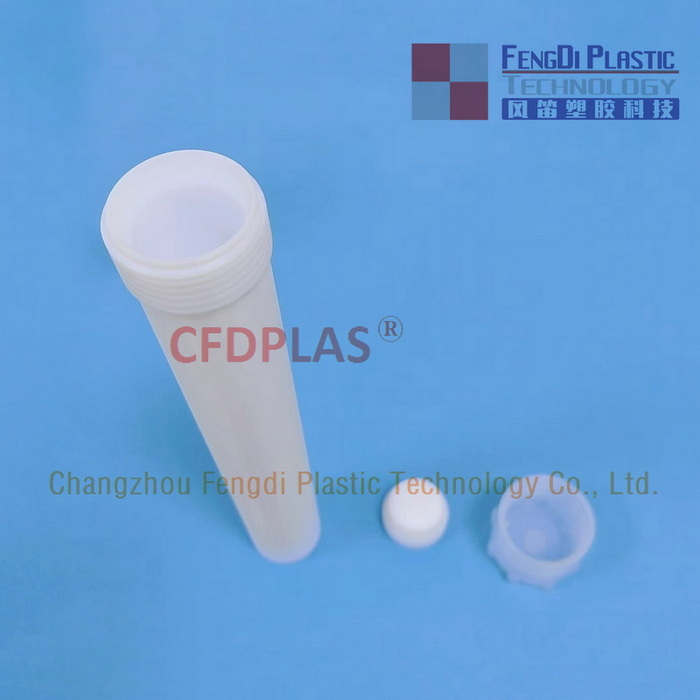

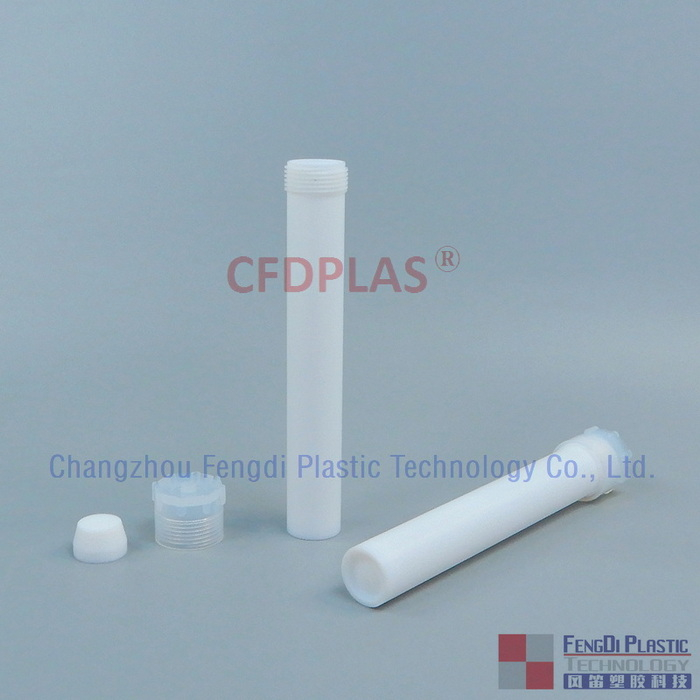

110ml Microwave Digestion Vessels is made from TFM(PTFE) materials by CNC processing,the TFM vessel Replacement fit on CEM Digester MARSXpress Plus Rotor Series.MARSXpress Plus TFM liner with the cover (PFA)(Replacement consists of TFM Vessel liner and PFA screw cap).
The TFM digestion vessel is a moderate temperature, moderate pressure vessel preferred by high-throughput labs with up to 40 samples per run. Popular applications include plants, vitamins, foods, and many environmental applications. Replacement of MARSXpress Plus digestion vessels are compatabile with iWave or IR control features. This vessel set uses TFM liners which are more robust and durable for the busiest labs.
Replacement of MARSXpress Plus digestion vessels Includes liners,caps,plugs,composite sleeves,turntable,and one vessel rack. For IR only temperature control.
Contains the following parts:
Replacement of 404065 - (24) MARSXpress Plus 110 mL TFM Liner, Plug, and Cap
Replacement of 404035 - (24) MARSXpress Plus 110 mL Composite Sleeve

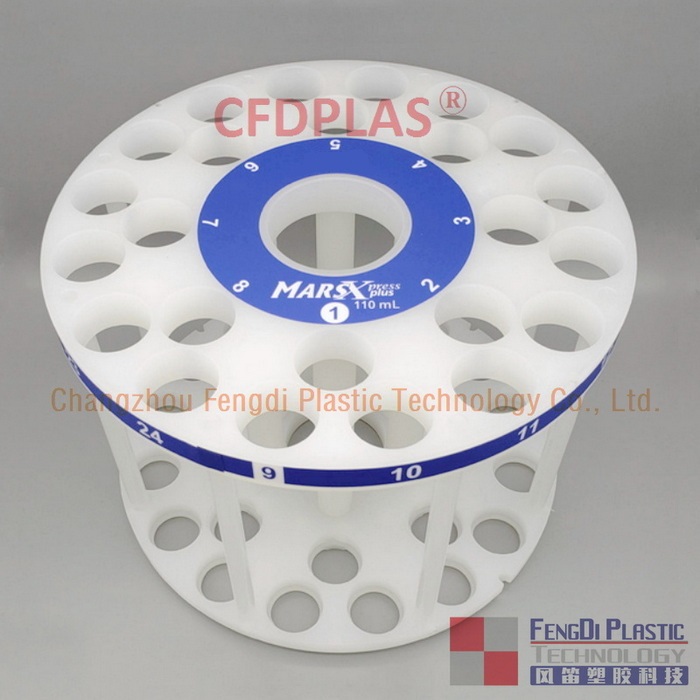

Replacement of 404195 - (1) MARSXpress Plus 110 mL 24 - Place Turntable
Replacement of 166222 - (1) Vessel Rack
NOTE: MARSXpress Plus digestion vessels can be used for acid digestion or solvent extraction; however, it is very important that each vessel set is designated for either acid digestion or solvent extraction.
CFDPLAS manufactures a wide variety of vessels to meet the temperature and pressure conditions required to completely digest your samples.
All CFDPLAS digestion vessels are manufactured from materials that are microwave transparent and focus all of the energy to your samples.
The open architecture design provides for rapid cooling without the need for special accessories.
From high throughput to high pressure CFDPLAS has the right digestion vessel for the task at hand.
Digestion Vessels and Liners have customized made volume vessels and liners.
Attribute | Content |
Item | MARSXpress Plus Digestion Vessels Replacement,TFM,110ml |
Brand | CFDPLAS |
Process | CNC Processing |
Capacity(ml) | 110ML |
Filling Volume | On request |
Model Number | CFD-DVL-111100MP/VHP |
Materials | TFM/PFA |
Color | Natural |
Dimensions (approx.) | Vessel Body Outer Diameter 32 mm, Internal Diameter: 26mm, Vessel body height 220 mm,Total Height:238mm |
Shape | Cylinder Round Type, round vessel bottom |

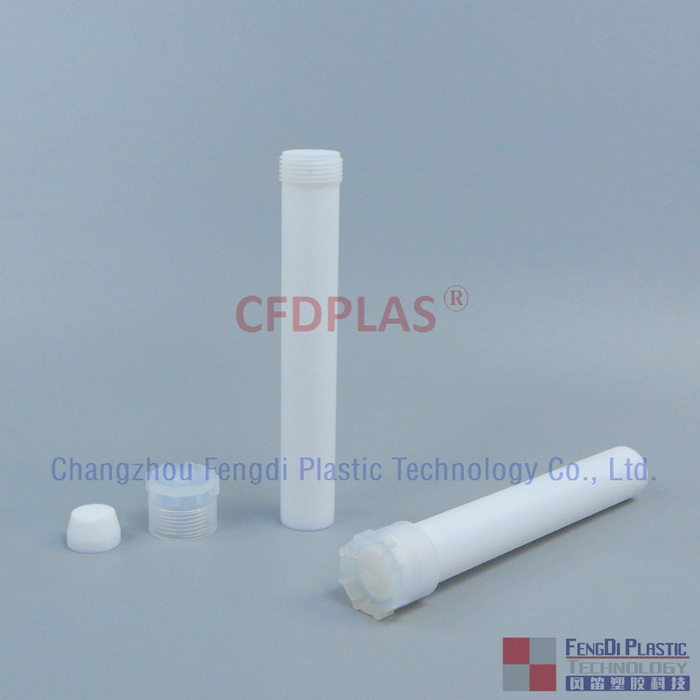

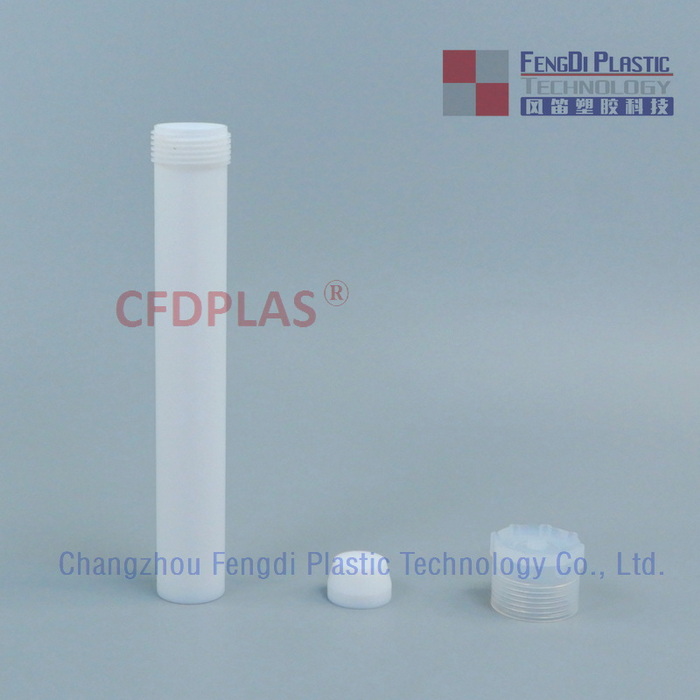

Structural assembly | Vessel Body + Vessel Plug+Screw Cap |
Weight (gram) | 146g ± 2g |
M.O.Q. (PCS) | 12 PCS |
Temperatures | Temperatures to -200 °C~+260℃ |
Working Pressure | Medium pressure control,High Throughput Vessel |
Option | Protection shield,outer vessel,Jacket MARSXpress Composite Sleeve |
Application Instrument | Fit on CEM Microwave Digester MARS Series, Vessel Rotor MARSXpress Plus |
Assembled Accessories | Vessel plug,PEEK frame screw,PEEK Load Disc,control lid |
Typical Applications | Plant materials,animal tissues,foods,fertilizers,feed grains,ores,filters, pharmaceuticals,some precious metals and alloys,polyethylene,polypropylene, and extractions,soils,motor oil,mixed edible oils,polymers,wastewater |
CEM other digestion vessels Replacements Parts | TFM/PFA 25ml vessel,TFM/PFA 40ml vessel,TFM/PFA 50ml vessel PFA 55ml vessel,TFM 75ml vessel,PFA 75ml vessel, TFM 100ml vessel,TFM 55ml vessel,PFA 110ml vessel, |
Related microwave digestion vessels tanks tubes and PTFE liners:
CEM microwave digestion TFM liner,Preekem digestion TFM Liner,Anton-Paar microwave digestion vessel liner,APL microwave digestion tanks inserts,SINEO Microwave Digestion Vessel Liner,LabTech digestion tubes,XinTuo digestion devices,Milestone microwave digestion tanks,BERGHOF microwave digestion systems parts,TFM vessel Liner... and so on.
CFDPLAS Series TFM digestion Vessels tanks,Liners,Tubes,Vials are used on many type of digestion instruments,e.g.
Graphite digestion instrument,Electrothermal digestion instrument,Automatic Electrothermal Digestion Apparatus,Hot Plate,Acid Catcher,Automatic Digestion Instrument,COD Digestion Instrument,Microwave Digestion Extractor,Microwave Digestion Systems,Microwave Synthesis Systems,Microwave Ashing Systems,Atomic Absorption Spectrometer,Atomic fluorescence spectrometer,High Temperature Automated Block Digestion,Heating Blocks for Open Vessel Digestion,and so on.
CFDPLAS Brand TFM digestion Vessels,tanks,Liners,Vials as replacement parts are used on many Brands of digestion instruments, e.g.: CEM,Preekem,Milestone,Anton-Paar,Labtech,Sineo,Questron,APL,Ossur,Analab,Bohlender,LEEMAN,SCP,Berghof,ATPIO,NUTEC,......and so on.
